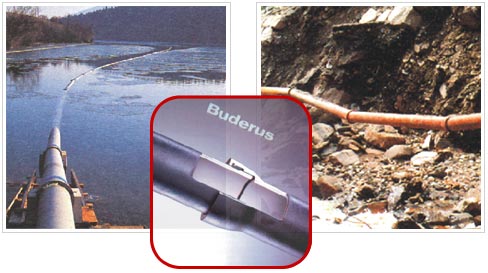

The ductile iron pipes are a very important part of the water equipment for us as we are the exclusive distributors of the well known BUDERUS Company. The high quality of the ductile iron pipes is the trade mark of this company. The dimensions of the pipes range from DN 80 up to DN 1000 with any type of joint.
|
| |
 |
 |
 socket for pipes |
 |
 |
| socket for fittings |
socket for EU pieces |
| DN |
dimensions mm |
weight in kg for socket |
| Ød1 |
ØD1 |
t |
pipe |
fitting |
EU piece |
rubber |
| 80 |
98 |
142 |
84 |
3,4 |
2,8 |
2,4 |
0,13 |
| 100 |
118 |
163 |
88 |
4,3 |
3,3 |
3,1 |
0,16 |
| 125 |
144 |
190 |
91 |
5,7 |
4,5 |
4 |
0,19 |
| 150 |
170 |
217 |
94 |
7,1 |
5,6 |
4,9 |
0,22 |
| 200 |
222 |
278 |
100 |
10,3 |
8 |
7,1 |
0,37 |
| 250 |
274 |
336 |
105 |
14,2 |
11,1 |
9,7 |
0,48 |
| 300 |
326 |
385 |
110 |
18,6 |
14,3 |
12,5 |
0,667 |
| (350) |
378 |
448 |
110 |
23,7 |
17,1 |
15,2 |
0,77 |
| 400 |
429 |
500 |
110 |
29,3 |
20,8 |
18,6 |
1,1 |
| 500 |
532 |
607 |
120 |
42,8 |
31,7 |
27,6 |
1,6 |
| 600 |
635 |
716 |
125 |
59,3 |
42,3 |
36,2 |
2,3 |
| 700 |
738 |
849 |
197 |
79,1 |
71,2 |
59,1 |
4,3 |
| 800 |
842 |
960 |
209 |
102,6 |
95,4 |
79,8 |
5,2 |
| 900 |
945 |
1042 |
221 |
129,9 |
150,3 |
122,7 |
6,3 |
| 1000 |
1048 |
1150 |
233 |
161,3 |
186,9 |
152,1 |
8,3 |
|
|
 |
|
|
